The VISION 15-Needle Single-Head Industrial Embroidery Machine

$9,898.99

$8,600.00

Option

Documents

Videos

DETAILS | FAQ

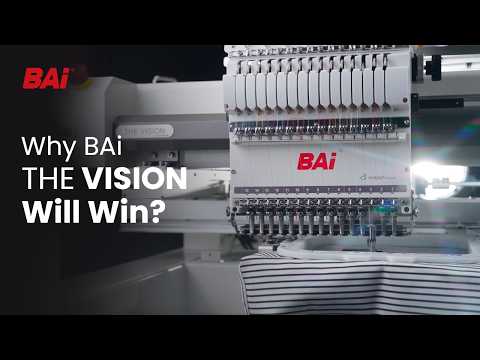

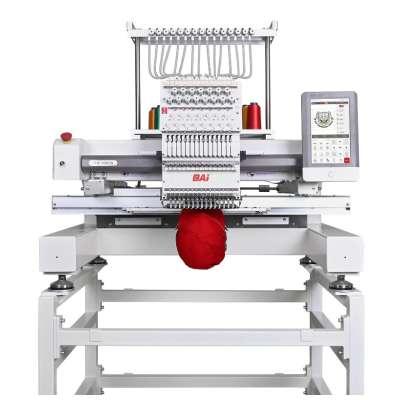

The VISION™ - 15-Needle Industrial Embroidery Machine

The Workhorse for Growing Shops.

BAI™ - Industrial Embroidery, Simplified.

The VISION™ is built for shops that have outgrown entry-level machines and need a true industrial chassis. Based on BAI's VISION platform, it combines a large embroidery field, high-speed performance, and mechanical upgrades tuned for heavy use and 3D hat work, all wrapped in DTGPRO's BAI™ branding and support.

Why The VISION™

Industrial-grade single head: 15-needle tubular configuration built for continuous production.
Larger field for bigger jobs: approx. 500 x 400 mm (19.7" x 15.7") for jackets, hoodies, bags and larger layouts.
High-speed output: flat embroidery up to 1200 spm, engineered for stable stitching at speed.

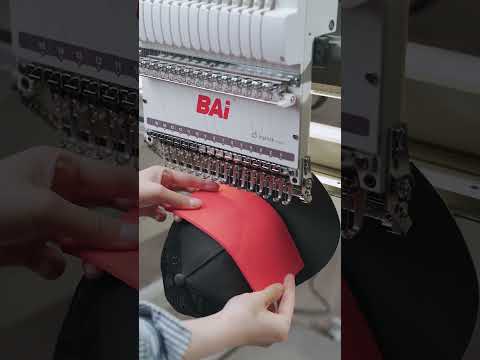

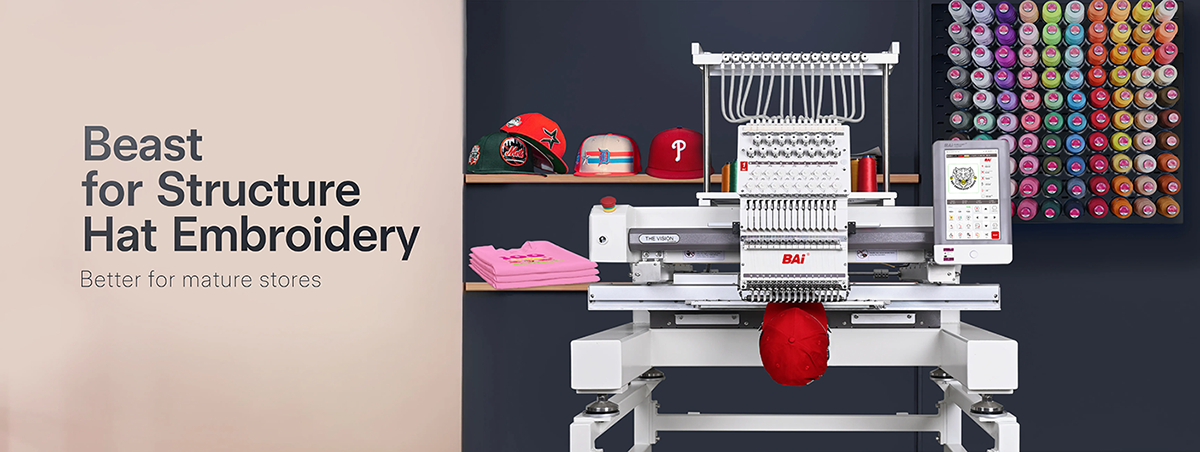

Hat & 3D performance: enhanced penetration and motion control for 3D hat embroidery with recommended speeds up to about 950 spm.
Upgraded motion system: improved belts, pulleys and bearings to reduce vibration, noise and wear in daily production.
Servo main motor & enhanced X/Y drives: designed for precise, stable motion on flats, shirts and hats alike.
Flat, rigid body design: lower center of gravity and reinforced frame improve stability at high speeds.
Mold-guided assembly: critical parts such as rails, motor mounts and needle heights are aligned with dedicated jigs for consistency.
Institch i5 controller: pattern management, curve optimization for different garments, and access to utility tools.
USB/Wi-Fi connectivity: import, group and manage design jobs in batches for faster workflow.

Ideal Applications

Everyday logo and branding work for businesses and teams
High-volume cap production, including 3D puff
Jackets, uniforms, workwear and outerwear
Fulfillment for online brands and contract customers
Patch production and multi-layer designs

Technical Specifications - The VISION™

Heads	1
Needles per Head	15
Max Embroidery Speed (flat)	Up to 1200 spm
Recommended 3D Hat Speed	Up to approximately 950 spm
Embroidery Area	Approx. 500 x 400 mm (19.7" x 15.7")
Control System	Institch i5 computerized control
Connectivity	USB and Wi-Fi
Motion / Drive	Servo main-axis motor with upgraded X/Y motors, heavy-duty belts and reinforced pulleys
Frame & Body	Reinforced flat body design with welded frame and upgraded handrails
Machine Size	Approx. 166 x 108 x 106 cm (65.4" x 42.5" x 41.7")
Machine Weight	Approx. 265 kg (584 lb)
Shipping Package	Wooden case, approx. 118 x 113 x 88 cm; around 335 kg (739 lb) gross weight
Power	AC 110-230 V, 50/60 Hz

Delivery or Warehouse Pickup Options

Choose the fulfillment option that works best for your order. Delivery is included in the listed price, or you may select warehouse pickup from an available pickup location.

Option 1: Home / Business Delivery

Your machine will be delivered directly to your home, business, school, or commercial location. Delivery is included in the price.

Option 2: Warehouse Pickup

Prefer to pick up your machine? Choose pickup from one of our available warehouse locations in the USA, Canada, UK, or Mexico.

View available pickup locations and details

Pickup availability may vary by model, inventory status, and warehouse location. Please confirm pickup details before arranging transportation.

What's Included with The VISION™

The VISION™ includes an industrial accessory kit built around hat and flat production (contents may vary by region and configuration):

Cap station, cap driver and multiple cap frames
Pairs of round hoops (approx. 3.5", 4.7", 5.9", 7.9")
Medium and large hoops including jacket-back size
Metal stand with supporting feet and handrails
Starter needles and pre-wound bobbins
Tool kit and basic maintenance accessories
Documentation and onboarding resources
FREE TRAINING & Technical Support

Compare BAI Embroidery Models

Feature	The MIRROR™	The VISION™	The VISION DUO™
Heads	1	1	2
Needles per Head	15	15	15
Max Speed (flat)	1200 spm	1200 spm	1200 spm
Recommended 3D Hat Speed	Up to 850 spm	Up to 950 spm	Up to 950 spm
Embroidery Area	Approx. 500 x 350 mm	Approx. 500 x 400 mm	Approx. 500 x 400 mm per head
Best For	Entry commercial / first machine	Growing shops, steady production	High-volume, multi-garment runs
