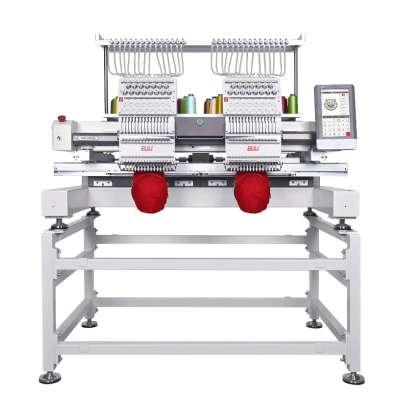

The VISION DUO™ - Dual-Head 15-Needle Industrial Embroidery Machine

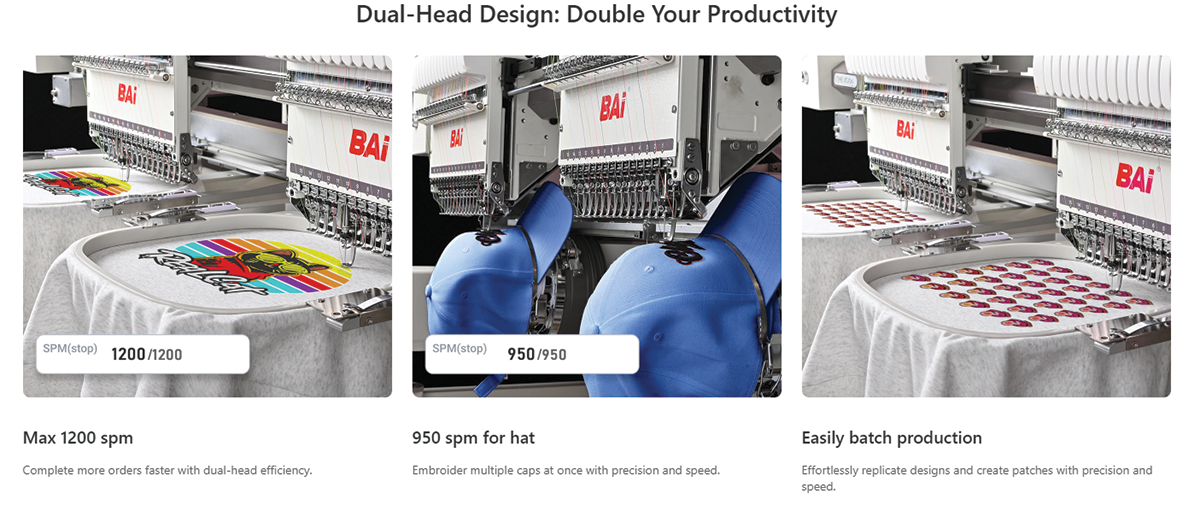

Double the Heads. Double the Output.

BAI™ - Industrial Embroidery, Simplified.

The VISION DUO™ is a dual-head embroidery platform for shops that are ready for serious production. Built on BAI's two-head VISION chassis and configured by DTGPRO, it lets you run two garments at once, mirror designs, or double your throughput on repeat jobs - all with the same 15-needle, large-field capability as The VISION™.

Why The VISION DUO™

Two industrial heads: 2 x 15-needle heads on a shared industrial frame for maximum output.
Large field per head: approx. 500 x 400 mm (19.7" x 15.7") on each head for jacket backs, hoodies, bags and more.
High-speed production: up to 1200 spm flat embroidery, engineered for stable stitching at speed.
3D hat specialist: optimized penetration and motion curve tuning for structured caps and 3D puff embroidery with recommended speeds up to around 950 spm.
Industrial frame & welding: flat body, welded structure and reinforced rails for stability across both heads.
Matched assembly: critical elements like rails, motor mounts and needle height are aligned so both heads track consistently.
Institch i5 controller: manages both heads with pattern batching, curve correction and workflow tools.
USB & Wi-Fi connectivity: import jobs, manage patterns and leverage network tools for multi-machine environments.
DTGPRO ecosystem support: integrates into your shop alongside DTF, DTG and other DTGPRO systems.

Ideal Applications

Contract embroidery and fulfillment centers
High-volume cap and 3D hat production
Bulk jacket, hoodie and uniform runs
Shops running parallel jobs or mirrored designs
Production environments that need redundancy and capacity

Technical Specifications - The VISION DUO™

Heads	2
Needles per Head	15
Max Embroidery Speed (flat)	Up to 1200 spm
Recommended 3D Hat Speed	Up to approximately 950 spm
Embroidery Area (per head)	Approx. 500 x 400 mm (19.7" x 15.7")
Control System	Institch i5 computerized control
Connectivity	USB and Wi-Fi
Machine Size	Approx. 150 x 87 x 167 cm (59.1" x 34.2" x 65.7")
Machine Weight	Approx. 338 kg (745 lb)
Shipping Package	Wooden case, approx. 167 x 113 x 88 cm; around 430 kg (948 lb) gross weight
Power	AC 110-230 V, 50/60 Hz

Delivery or Warehouse Pickup Options

Choose the fulfillment option that works best for your order. Delivery is included in the listed price, or you may select warehouse pickup from an available pickup location.

Option 1: Home / Business Delivery

Your machine will be delivered directly to your home, business, school, or commercial location. Delivery is included in the price.

Option 2: Warehouse Pickup

Prefer to pick up your machine? Choose pickup from one of our available warehouse locations in the USA, Canada, UK, or Mexico.

View available pickup locations and details

Pickup availability may vary by model, inventory status, and warehouse location. Please confirm pickup details before arranging transportation.

What's Included with The VISION DUO™

The VISION DUO™ ships with a dual-head accessory kit geared toward production (contents may vary by region and configuration):

Cap station plus dual cap drivers
Multiple cap frames for both heads
Sets of round hoops (approx. 3.5", 4.7", 5.9", 7.9") for each head
Medium and large hoops, including jacket-back sizes
Industrial stand with supporting feet and handrails
Starter needles and multiple boxes of pre-wound bobbins
Tool kit and basic maintenance accessories
Onboarding resources and documentation
FREE TRAINING & Technical Support

Compare BAI Embroidery Models

Feature	The MIRROR™	The VISION™	The VISION DUO™
Heads	1	1	2
Needles per Head	15	15	15
Max Speed (flat)	1200 spm	1200 spm	1200 spm
Recommended 3D Hat Speed	Up to 850 spm	Up to 950 spm	Up to 950 spm
Embroidery Area	Approx. 500 x 350 mm	Approx. 500 x 400 mm	Approx. 500 x 400 mm per head
Best For	Entry commercial / home-based businesses	Growing shops / single-line production	High-volume contract and multi-line production
