DTFLINE 24" V4 Powder Application and Curing Machine

DTFLINE PANTHERA V4 Intelligent Compact High-Speed Powder Shaker & Dryer

A professional fourth-generation automatic powder application, curing, purification, cooling, and film take-up system for high-speed 24-inch roll-to-roll DTF production.

The DTFLINE PANTHERA V4 Intelligent Compact High-Speed Powder Shaker & Dryer is engineered to automate the primary post-print stages of professional Direct-to-Film production. Installed behind a compatible roll-fed DTF printer, the system applies adhesive powder to freshly printed film, removes and recovers excess powder, cures the transfer inside a controlled heating chamber, cools the finished film, and collects it using an automatic constant-tension take-up system.

Designed for professional two-, four-, and six-printhead DTF printers, the PANTHERA V4 Shaker combines high-speed finishing capacity with intelligent controls, built-in smoke and oil purification, and a compact footprint designed for real commercial production environments.

Available Options:

DTFLINE 24" V2 SHAKER	DTFLINE 24" V4 SHAKER
24" Width DTF Film Roll Handling For 1-2 headed printers Can handle DTF print speeds up to 120 sq ft / hr	24" Width DTF Film Roll Handling For 2-6 headed printers Can handle DTF print speeds up to 370 sq ft / hr Fits Standard Doorways 33" Wide Compact Design (40" Shorter than other Shakers) Built-In Smoke Purifier Energy Efficient Operation Advanced Safety Protection Touchscreen Smart Control Smart Automation Features
$6,000.00 view item	$9,000.00

The system supports compatible finishing speeds of up to approximately 35 m²/hour or 370 square feet per hour under suitable operating conditions, providing the capacity required for high-output gang-sheet, wholesale-transfer, contract-printing, and fulfillment workflows.

Unlike many traditional long-format shaker systems, the PANTHERA V4 is approximately 33.7 inches wide and approximately 88.5 inches long. Its doorway-friendly width and reduced overall length can simplify delivery, preserve valuable production-floor space, and make professional DTF finishing accessible to a wider range of shops and facilities.

ELECTRICAL REQUIREMENT: The PANTHERA V4 Shaker requires 220V electrical service. The customer is responsible for confirming voltage, frequency, plug configuration, receptacle type, circuit capacity, and local electrical-code requirements before delivery and installation.

Purchase Includes

• DTFLINE PANTHERA V4 Intelligent Compact High-Speed Powder Shaker & Dryer
• Automatic adhesive-powder application system
• Adjustable powder-distribution controls
• Automatic excess-powder removal and recovery
• Dual-row upper and lower heating system
• Adaptive PID temperature management
• Insulated curing chamber
• High-temperature-resistant mesh conveyor
• Film cooling and stabilization
• Constant-tension automatic film take-up
• Built-in smoke and oil purification system
• Integrated oil-separation drain
• Touchscreen smart-control interface
• Automatic powder-level monitoring and shortage alerts
• Safety-cover interlock system
• Manuals and available operating tutorials

Available Options:

DTFLINE 24" V2 SHAKER	DTFLINE 24" V4 SHAKER
24" Width DTF Film Roll Handling For 1-2 headed printers Can handle DTF print speeds up to 120 sq ft / hr	24" Width DTF Film Roll Handling For 2-6 headed printers Can handle DTF print speeds up to 370 sq ft / hr Fits Standard Doorways 33" Wide Compact Design (40" Shorter than other Shakers) Built-In Smoke Purifier Energy Efficient Operation Advanced Safety Protection Touchscreen Smart Control Smart Automation Features
$6,000.00 view item	$9,000.00

A Complete Automatic DTF Finishing Workflow

Printed DTF film feeds directly from a compatible roll-to-roll printer into the PANTHERA V4 Shaker. Adhesive powder is distributed across the wet printed image, after which shaking and powder-management functions remove material that has not adhered to the ink layer.

Excess powder is collected for potential reuse, helping reduce waste when the equipment is properly operated and maintained. The powdered film then moves through the insulated curing chamber, where upper and lower heating tubes melt and cure the adhesive layer.

After curing, the film travels through the cooling and stabilization area before being collected by the automatic constant-tension take-up system. The result is an organized finished roll that may be cut, stored, fulfilled, or transferred to garments and compatible products using a heat press.

The integrated touchscreen provides centralized access to powdering, temperature, conveyor movement, curing, winding, and system-status functions, helping operators coordinate the shaker with the speed and output of the connected printer.

Designed for Professional High-Speed DTF Printers

The PANTHERA V4 Shaker is designed for compatible professional two-, four-, and six-printhead DTF printer configurations. Its finishing capacity provides production headroom for growing businesses and helps reduce the risk of the shaker becoming a bottleneck as printer output increases.

• Compatible with professional 24-inch roll-fed DTF production
• Designed for compatible two-, four-, and six-printhead printers
• Supports finishing speeds of up to approximately 35 m²/hour
• Suitable for gang sheets and wholesale-transfer production
• Designed for sustained commercial workflows
• Adjustable conveyor and curing controls for different print modes
• Production headroom for growing print operations

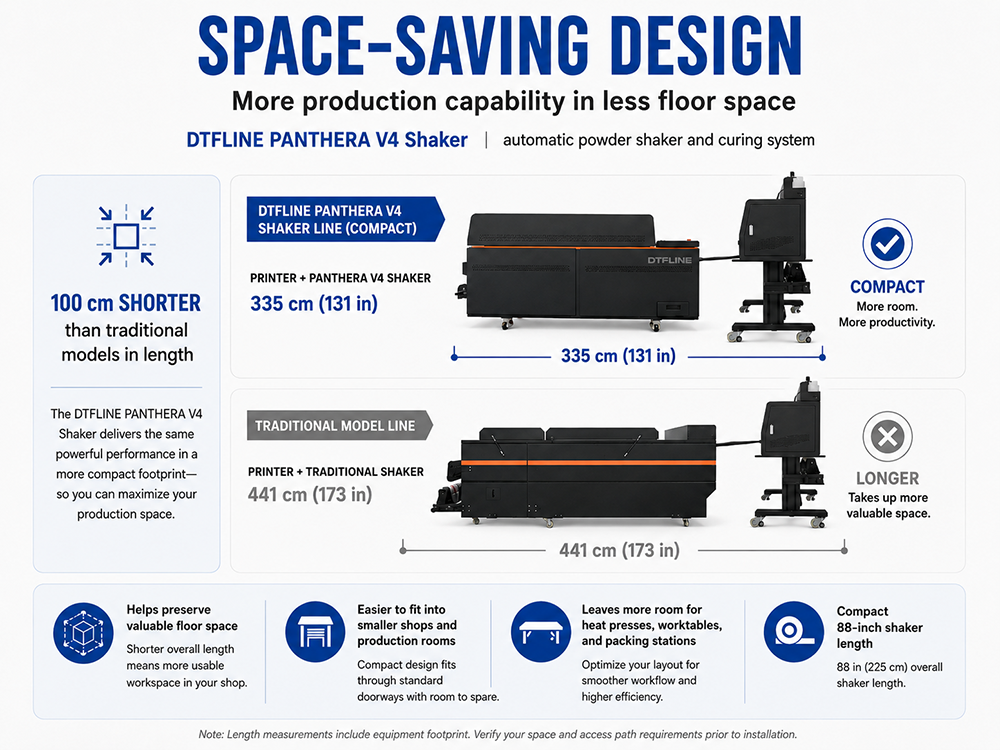

Professional Production Without Sacrificing Floor Space

The PANTHERA V4 features an innovative compact curing architecture measuring approximately 88.5 inches long, 33.7 inches wide, and 39.7 inches high.

When installed with a compatible PANTHERA printer, the complete production line may be approximately 132 inches long, compared with approximately 173 inches for the referenced traditional printer-and-shaker configuration.

That represents approximately 41 inches—more than 3 feet—of saved production-line length.

• Approximately 88.5-inch shaker length
• Approximately 33.7-inch machine width
• Approximately 39.7-inch machine height
• Up to approximately 100 cm shorter than referenced traditional systems
• Helps preserve usable production-floor space
• Leaves more room for heat presses, worktables, film storage, and packing stations
• Well suited for smaller shops, studios, fulfillment areas, and growing facilities

The reduced footprint allows businesses to build a more efficient production layout without sacrificing professional powdering and curing capacity.

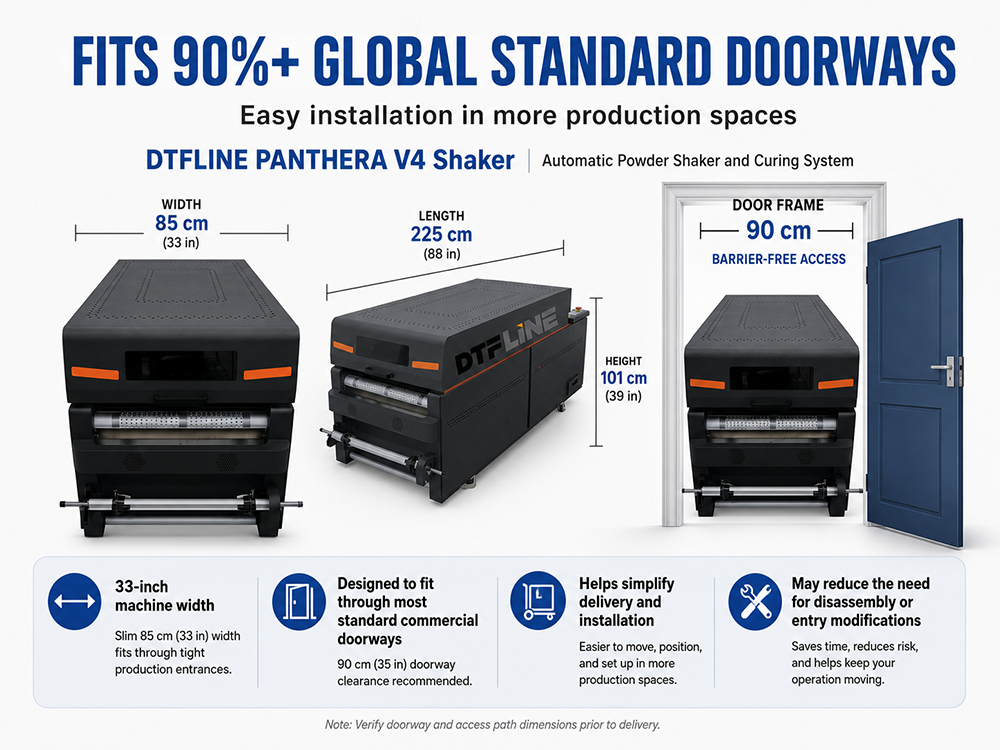

Designed to Fit Through Standard Doorways

Equipment access is one of the most frequently overlooked parts of a professional DTF installation. Many traditional wide-format curing systems are too wide to pass through standard doors without disassembly, specialized rigging, removal of door frames, or modifications to the building.

The PANTHERA V4 Shaker is approximately 33.7 inches / 85.6 cm wide and is designed to pass through most standard commercial and residential doorways, including openings of approximately 90 cm / 35.4 inches.

• Approximately 33.7-inch machine width
• Designed for access through most standard doorways
• May reduce the need to disassemble the shaker
• May reduce the need to remove door frames or alter entrances
• Simplifies movement into interior production rooms
• Can reduce installation labor, complexity, and rigging requirements
• Helpful for offices, retail suites, warehouses, and multi-room facilities

This installation-conscious design helps customers move the shaker closer to its final operating position without the access difficulties commonly associated with oversized curing systems.

Customers remain responsible for measuring all doorways, loading areas, hallways, turns, ramps, elevators, ceiling clearances, and final installation space before delivery.

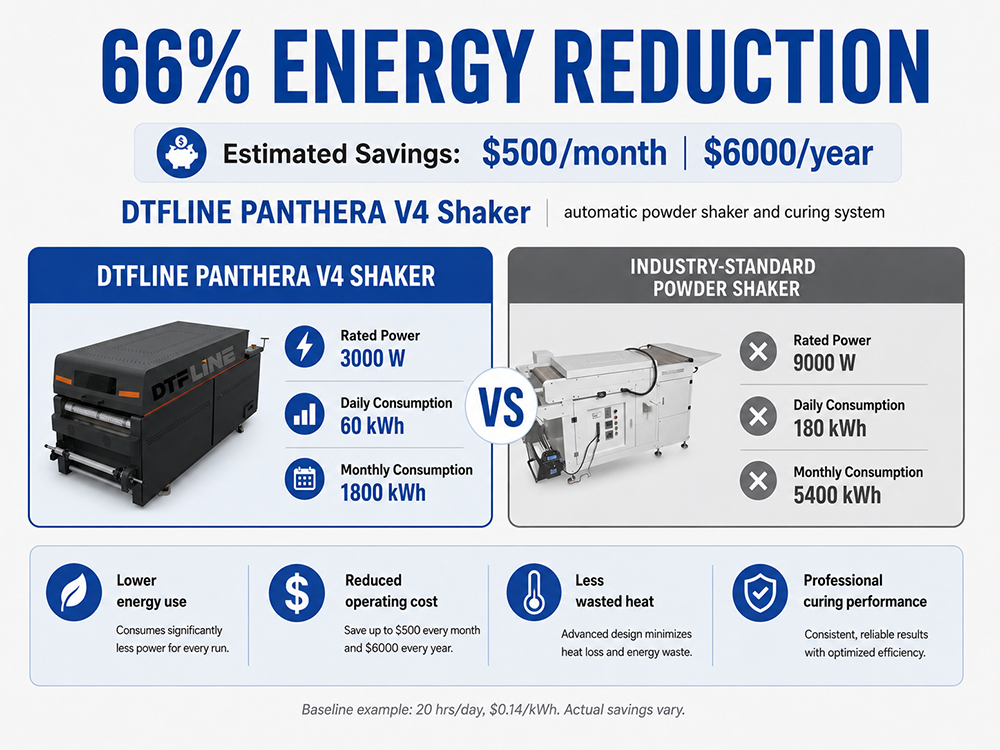

Lower Energy Consumption and Potential Operating-Cost Savings

The PANTHERA V4 Shaker is engineered for energy-efficient professional curing, with typical rated operating power of approximately 2,500 to 3,000 watts and peak power of approximately 4,000 watts.

By comparison, some traditional powder shaker and curing systems may be rated at approximately 9,000 watts. Based on the manufacturer's referenced comparison, the PANTHERA V4 may use approximately 66% less energy than such traditional equipment.

• Typical rated operating power: approximately 2,500–3,000 watts
• Peak power: approximately 4,000 watts
• Up to approximately 66% lower energy consumption than the referenced 9,000-watt system
• Lower electrical demand during extended production schedules
• Potentially lower monthly operating costs
• Less unnecessary heat released into the production environment
• Insulated curing chamber helps retain heat where it is needed

The manufacturer's comparison illustrates potential savings of up to approximately $500 per month or $6,000 per year under a high-utilization example based on 20 operating hours per day and electricity priced at $0.14 per kWh.

Actual electricity use and cost savings vary according to production hours, standby time, curing temperature, film speed, ink coverage, ambient conditions, local electricity rates, equipment maintenance, and the system used for comparison. Savings are not guaranteed.

Advanced Intelligent Curing Technology

• Adaptive PID Temperature Control: Automatically regulates heating to help maintain stable curing conditions as conveyor speed, film, powder, and ink coverage change.
• Dual-Row Heating System: Upper and lower heating tubes support more uniform curing across the film width and help reduce incomplete powder melting or drying.
• Fully Insulated Heating Chamber: Multi-layer thermal insulation helps retain heat inside the curing area while reducing unnecessary exterior heat and energy loss.
• Professional Curing Temperature: Designed to maintain curing conditions around approximately 130°C when appropriately configured for the selected film, powder, ink load, and production speed.
• Reduced Exterior Heat: Insulation helps limit external surface temperatures compared with the internal curing environment. Exterior temperature varies by operating conditions and measurement location.
• High-Temperature-Resistant Mesh Conveyor: Supports stable film transport through the heating chamber during continuous production.
• Adjustable Film Speed: Allows the conveyor to be coordinated with printer output, film type, ink coverage, powder, curing requirements, and ambient conditions.

Smart Powder Management

• Automatic Powder Application: Distributes compatible adhesive powder across the wet printed ink layer.
• Adjustable Powder Baffle: Allows operators to refine powder distribution for different films, print widths, and production conditions.
• Automatic Powder-Level Detection: Monitors available powder and provides a warning when the supply reaches a critically low level.
• Excess-Powder Removal: Shaking functions remove powder that has not adhered to the printed image.
• Powder Recovery: Collects excess powder for potential reuse, helping reduce material waste when appropriate powder-handling practices are followed.
• Safety-Cover Interlock: Opening the powder-system cover automatically stops powder-system operation to help protect the operator.

Built-In Smoke and Oil Purification

The PANTHERA V4 includes an integrated smoke and oil purification system designed to help capture and process airborne byproducts generated during the curing process.

• Built-in smoke and fume processing
• Oil-smoke separation functions
• Integrated oil drain for routine maintenance
• Replaceable filtration components
• Reduced dependence on a separate freestanding purifier
• Integrated design helps preserve production-floor space

The purifier, filters, drain, and related components must be inspected, cleaned, and maintained regularly. Filters and other purification components are maintenance or consumable items and may require periodic replacement.

Built-in purification does not eliminate the need for appropriate room ventilation. Supplemental extraction, ducting, filtration, or air-management equipment may still be recommended or required based on the installation environment and local regulations.

Automatic Cooling and Film Take-Up

After curing, the film passes through a cooling and stabilization area before being collected by the automatic take-up system.

• Cooling before film collection
• Constant-tension automatic rewinding
• Organized finished-roll collection
• Reduced manual film handling
• Supports continuous roll-to-roll workflows
• Finished rolls may be stored, cut, shipped, or pressed later

Touchscreen Smart Control

The integrated touchscreen interface provides centralized control of the machine's primary production functions.

• Powder-system control
• Temperature settings and monitoring
• Conveyor and film-speed adjustment
• Heating and curing controls
• Automatic winding functions
• Powder-level alerts
• System-status monitoring
• One-touch access to primary operating functions

Key Benefits

• Complete Automated Workflow: Combines powdering, excess-powder recovery, curing, purification, cooling, and take-up.
• High-Speed Finishing Capacity: Supports compatible throughput of up to approximately 35 m²/hour or 370 square feet per hour.
• Two- to Six-Head Compatibility: Designed for compatible professional two-, four-, and six-printhead systems.
• Compact Footprint: Up to approximately 100 cm shorter than referenced traditional shaker configurations.
• Doorway-Friendly Width: Approximately 33.7 inches wide for easier delivery and installation.
• Energy-Efficient Curing: Typical rated consumption of approximately 2,500–3,000 watts.
• Built-In Purification: Integrated smoke and oil management helps reduce dependence on separate equipment.
• Intelligent Temperature Management: Adaptive PID controls help maintain stable curing conditions.
• Smart Powder Management: Includes automatic dispensing, adjustable distribution, recovery, and low-powder alerts.
• Constant-Tension Take-Up: Collects cured film into an organized finished roll.
• Touchscreen Operation: Centralizes primary production controls and system-status functions.
• Advanced Safety Protection: Cover-interlock system stops powder operation when the cover is opened.

Ideal Applications

• Professional gang-sheet production
• Wholesale DTF transfers
• Custom apparel production
• Contract printing
• Fulfillment operations
• Team and uniform production
• Promotional-product businesses
• Multi-press production environments
• Growing shops upgrading from manual powdering and curing
• Facilities requiring a compact high-output finishing system

Technical Specifications

Electrical and Installation Requirements

• Electrical Service: Requires compatible 220V electrical service.
• Dedicated Circuit: A dedicated circuit may be required or recommended based on equipment specifications, circuit capacity, local code, and other connected equipment.
• Qualified Electrician: Electrical preparation and receptacle installation should be completed by a qualified electrician where required.
• Access Measurements: Confirm doorway, hallway, ramp, elevator, loading-area, and turning clearances before delivery.
• Floor Space: Provide sufficient room for the shaker, connected printer, film loading, operator access, ventilation, and maintenance.
• Ventilation: Suitable room ventilation and any required supplemental extraction must be provided.
• Environmental Conditions: Maintain the temperature and humidity recommended for the connected DTF printer, inks, film, and powder.

The customer is responsible for confirming voltage, frequency, phase, plug configuration, receptacle type, circuit capacity, electrical wiring, ventilation, access, equipment placement, and applicable local requirements before shipment.

Adapters, extension cords, voltage converters, or improvised electrical connections should not be used unless specifically approved for the equipment and installation.

What's Not Included, but You May Need

• Compatible DTF Printer: This listing is for the powder shaker and curing system only. A compatible professional roll-fed DTF printer is required.
• DTF Film: Professional roll-fed DTF transfer film is required and sold separately.
• DTF Transfer Powder: Compatible adhesive powder is required and sold separately.
• DTF Inks: Required by the connected printer and sold separately.
• Heat Press: Required to apply the finished transfers to garments or compatible products.
• Windows Production Computer and RIP Software: Required for operation of the connected printer.
• Replacement Purifier Filters: Filtration components are maintenance items and may require periodic replacement.
• Supplemental Ventilation: Ducting, extraction, external fans, adapters, and professional ventilation installation are not included unless specifically stated.
• Electrical Preparation: Circuit, receptacle, wiring, and electrician services are not included.
• Freight Unloading and Placement: Lift-gate, forklift, pallet-jack, rigging, doorway access, and final placement services are not included unless specifically stated.

Important Production Considerations

The PANTHERA V4 Shaker must be adjusted according to the connected printer, selected film, ink coverage, adhesive powder, print mode, conveyor speed, ambient conditions, and desired finished-transfer result.

Incorrect powder distribution, curing temperature, film speed, airflow, cooling, or take-up tension may affect transfer appearance, adhesive coverage, release characteristics, wash durability, hand feel, film tracking, and finished-transfer quality.

The stated capacity of up to approximately 35 m²/hour or 370 square feet per hour represents maximum compatible finishing capability under suitable conditions. Actual throughput depends on printer output, film, ink coverage, powder, curing requirements, ambient conditions, maintenance, and finished-transfer specifications.

The purification system, filters, oil-separation system, drain, heating chamber, conveyor, powder system, cooling path, and winding system require regular inspection, cleaning, and preventive maintenance.

Automation and safety systems do not replace operator supervision, proper installation, suitable electrical service, ventilation, regular maintenance, or adherence to supplied operating procedures. The system must not be operated unattended.

6-Month Limited Equipment Warranty

DTGPRO provides a six-month limited equipment warranty covering qualifying defects in materials or manufacturing, subject to the applicable warranty terms, exclusions, maintenance requirements, and operating conditions.

Consumable and wear-related components are excluded from standard warranty coverage. These may include, without limitation, filters, heating elements, belts, rollers, sensors, mesh-conveyor components, powder-contact components, purification components, and parts affected by powder, oil, smoke, heat, normal wear, misuse, neglect, improper cleaning, incompatible consumables, inadequate ventilation, or failure to follow required procedures.

Replacement consumables and service parts are available separately. Please review the complete warranty policy and DTGPRO terms and conditions before purchasing.

NOTE: Due to production demand, equipment preparation, testing, and freight scheduling, this product may be subject to a lead time unless specifically identified as QUICKSHIP. Orders are generally processed in the order received.

Equipment color, exterior panels, control arrangement, component placement, and minor cosmetic details may vary by production version. Product images are representative, and engineering or component updates may be made without materially reducing intended functionality.

The purchaser is responsible for confirming equipment dimensions, doorway and access clearances, installation space, 220V electrical requirements, ventilation, operating environment, freight access, unloading requirements, and applicable local regulations before shipment.

Intelligent High-Speed Powdering, Energy-Efficient Curing, Space-Saving Installation, and Complete Professional Roll-to-Roll Finishing.
