Roland TrueVIS VG4-540 54 Eco-Solvent Printer/Cutter

Roland TrueVIS VG4-540 54" Eco-Solvent Printer/Cutter

Name: Roland TrueVIS VG4-540 54" Eco-Solvent Printer/Cutter
Brand: Roland
SKU: ROLAND-VG4-540
Price: 13495.00 USD
Availability: InStock

$14,494.99

$13,495.00

Documents

Videos

DETAILS | FAQ

Roland Printer/Cutters

Roland TrueVIS VG4 Series

Professional integrated print-and-cut performance for banners, signs, wraps, decals, window graphics, and more. The TrueVIS VG4 Series combines premium output quality, expanded color capability, modern workflow tools, and the choice of 54" or 64" production width.

Available Options:

Roland TrueVIS VG4-540	Roland TrueVIS VG4-640

54" print width	64" print width
$13,495.00	$15,495.00 view item

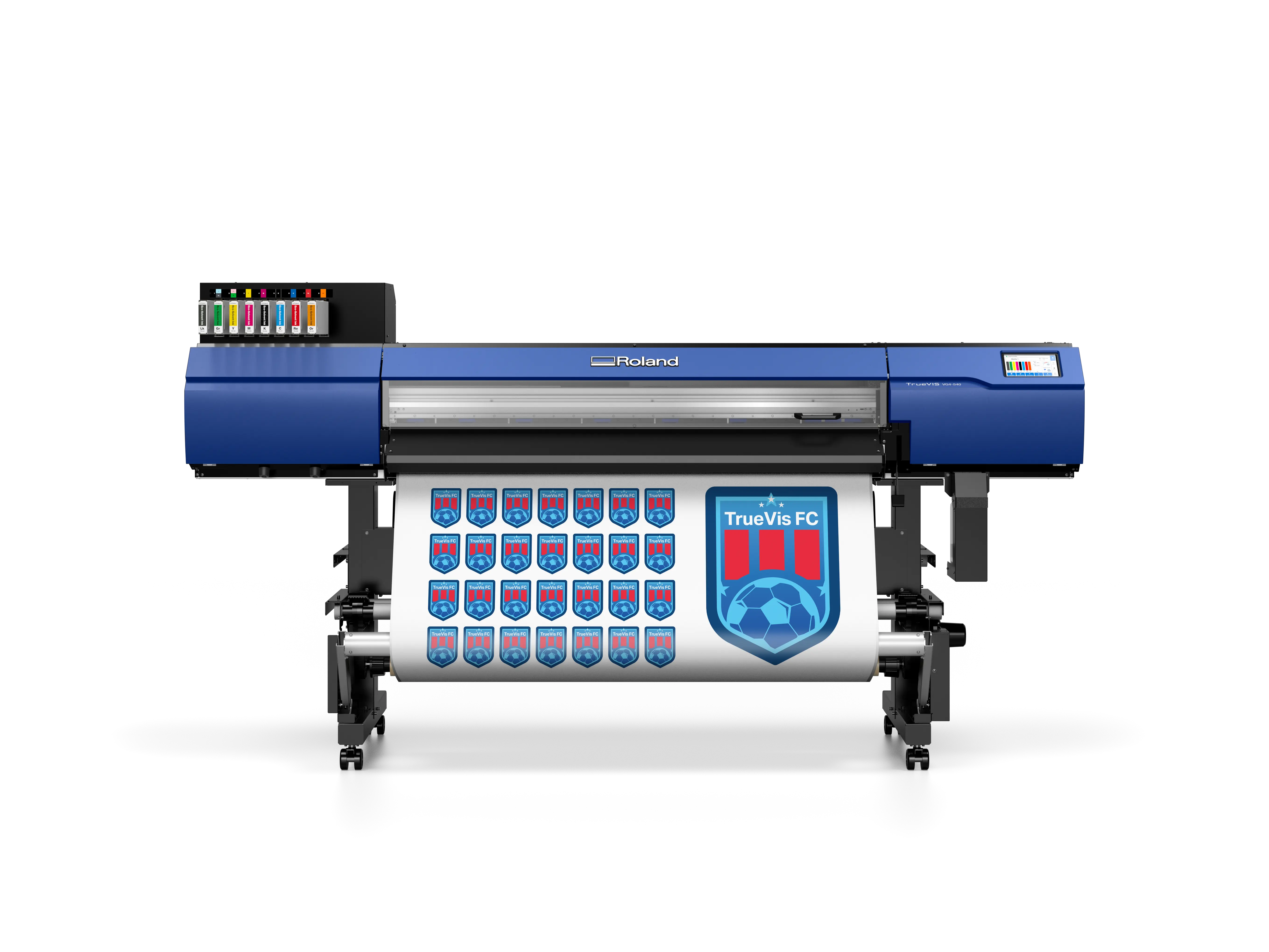

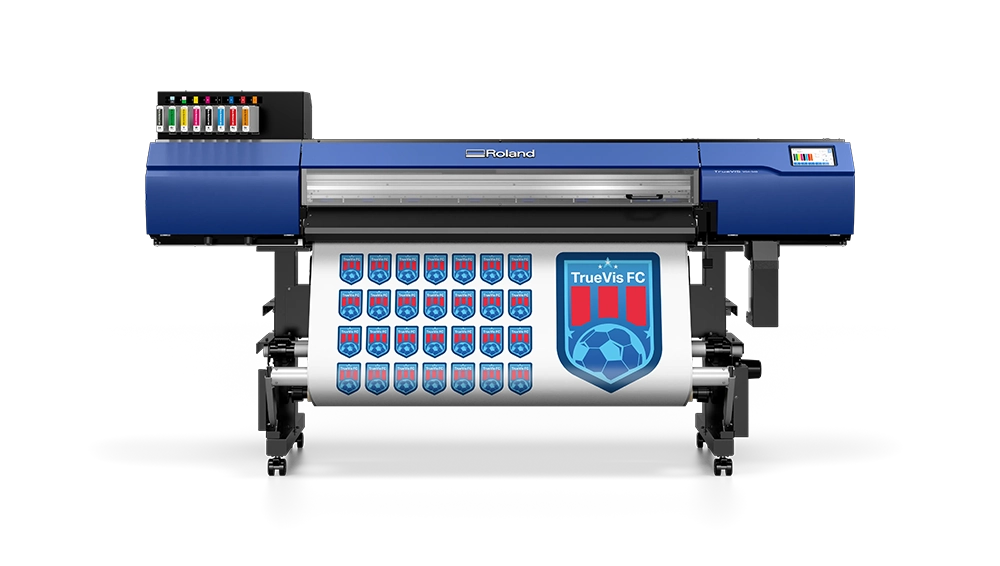

Roland TrueVIS VG4 Series Printer Cutter

Available Models

This product page covers the VG4-540 and VG4-640. Both models share the same core platform, workflow, and feature set, with the primary difference being media width and overall machine size.

VG4-540

54" class print-and-cut system
Media width range: 11.7" to 54"
Ideal for shops wanting a more compact footprint
Excellent for signs, decals, wraps, labels, and display graphics

VG4-640

64" class print-and-cut system
Media width range: 13.2" to 64"
Best for larger-format production flexibility
Excellent for banners, wraps, signage, and oversized display graphics

Built for Modern Print Production

The TrueVIS VG4 Series is designed for sign and graphics professionals who need outstanding color, integrated print-and-cut efficiency, and lower operating costs in one streamlined production platform. With TR3 eco-solvent inks, direct-to-printer workflow features, included take-up, and VersaWorks 7 support, the VG4 Series is built to help growing shops produce more with confidence.

Integrated Print & Cut

TR3 Eco-Solvent Ink

Included Take-Up System

VersaWorks 7 + DG Connect

Key Features

Integrated print-and-cut workflow for efficient production and reduced handling
Expanded color capability with TR3 ink options including Orange, Green, Red, and Light Black depending on configuration
True Rich Color output for vibrant graphics, smooth gradations, and neutral grays
Included take-up system for more reliable unattended production
7" touchscreen panel for intuitive printer operation
Sheet cut / perforated cut support for simplified job handling
Direct-to-printer workflow support for streamlined production
Roland DG Connect cloud monitoring and device support
VersaWorks 7 RIP workflow included

Ink & Workflow Highlights

TR3 GBL-free eco-solvent inks
500 ml cartridges for most colors
220 ml white cartridge option where applicable
Paper-based ink cartridges for a more environmentally friendly cartridge format
Cleaning liquid required for installation
Supported software: VersaWorks 7, Roland DG Connect, Roland DG Connect HUB
Targeted for: production sign shops, wrap-focused shops, and mid- to high-volume graphics businesses

Applications You Can Create

The Roland TrueVIS VG4 Series is built for versatile production across a wide range of professional graphics applications, including banners, signs, vehicle wraps, floor graphics, and window signage.

Banners

Signs

Vehicle Wraps

Floor Signs

Window Signs

Swipe or scroll horizontally to view all applications.

Applications

Banners - Produce promotional banners, event graphics, and retail display output
Signs - Create indoor and outdoor signage for branding, promotions, and wayfinding
Vehicle Wraps - Output vibrant, durable wrap graphics for cars, vans, and fleets
Floor Signs - Produce floor graphics for promotions, events, and directional messaging
Window Signs - Create storefront graphics, sale messaging, and branded window displays

Ideal Customers

Production sign shops
Mid- to high-volume banner and signage businesses
Wrap-focused graphics shops
Businesses producing decals, labels, and retail display graphics
Print providers seeking integrated print-and-cut output with strong color performance

Specifications

Specification	VG4-540	VG4-640
Printing Method	Piezo ink-jet method	Piezo ink-jet method
Media Width	295 to 1,371 mm (11.7" to 54")	335 to 1,625 mm (13.2" to 64")
Printing / Cutting Width	Max. 1,346 mm (52.9")	Max. 1,600 mm (62.9")
Ink Type	TR3 Eco-Solvent Ink	TR3 Eco-Solvent Ink
Ink Cartridge Size	500 ml (220 ml white only where applicable)	500 ml (220 ml white only where applicable)
Printing Resolution	Max. 1,800 dpi	Max. 1,800 dpi
Cutting Speed	10 to 300 mm/s	10 to 300 mm/s
Blade Force	30 to 500 gf	30 to 500 gf
Connectivity	Ethernet (100BASE-TX / 1000BASE-T, automatic switching)	Ethernet (100BASE-TX / 1000BASE-T, automatic switching)
Dimensions with Stand	103.6" W x 29.4" D x 55.7" H	113" W x 29.4" D x 55.7" H
Weight with Stand	401.2 lbs.	416.7 lbs.

Additional details such as print modes, speed charts, and ink-consumption tables can be presented in tabs or downloadable spec-sheet format if you want to expand this page further.

What's Included

Roland TrueVIS VG4 printer/cutter (selected model)
Stand
Power cord
Media take-up unit
Media holders
Replacement blade for separating knife
Cleaning liquid bottle for maintenance
Drain bottle
User manual
VersaWorks software
Roland DG Connect HUB / software support tools

Required / Recommended Items

TR3 ink set required for setup and production
TR3-CL cleaning liquid required for installation and should be ordered with the initial ink set
Computer workstation for RIP workflow
Professional installation / onboarding required
Optional extended dryer unit: DU3-64
Contour cutting blades and holders as needed for application workflow

Why Choose the VG4 Series

The Roland TrueVIS VG4 Series is designed to give growing print shops a strong balance of premium output quality, versatile application range, modern RIP and device-management tools, and dependable integrated print-and-cut production. Whether you choose the VG4-540 or the VG4-640, you are getting a professional Roland platform built for daily graphics production.

WARNING: WARNING: WORK IN A WELL VENTILATED AREA and use Protective Equipment (including masks and gloves) when working with specialty printing and curing products and processes (including DTF, DTG, UV etc.) as fumes and processes may be hazardous. We highly recommend the use of a fume extractor when working with DTF powder in addition to good ventilation and filtration in your work area. The use of all specialty ink printing equipment and supplies such as inks, chemicals, powders etc. are at the sole risk of the user. Specialty inks and film require a good humidity and temperature environment (55% - 75% humidity, and 75° to 80°F) to minimize risk of ink clogs and film buckling.
