24-INCH DTF SYSTEM - PRINTER + BLACK S24 SHAKER
Print. Powder. Cure.
Bring your transfers in-house.
Pair the STS XPD-924D dual-head printer with the matching black S24 automatic powder shaker and curing oven. Your bundle brings together professional printing, automated powdering and curing, RIP software, starter supplies and FREE remote training.
CMYK + WHITEAUTOMATIC POWDERING + CURINGRIP + STARTER SUPPLIESFREE REMOTE TRAININGPrinter + S24 shaker / curing oven + RIP + starter supplies + remote training
BUILT FOR YOUR NEXT STAGE
Two machines. One coordinated production workflow.
Create detailed logos, bold graphics and colorful apparel transfers with the XPD-924D. Let the S24 handle adhesive application and curing, reducing repetitive manual work between printing and pressing. Gang multiple designs across 24-inch film and produce transfers on your schedule.

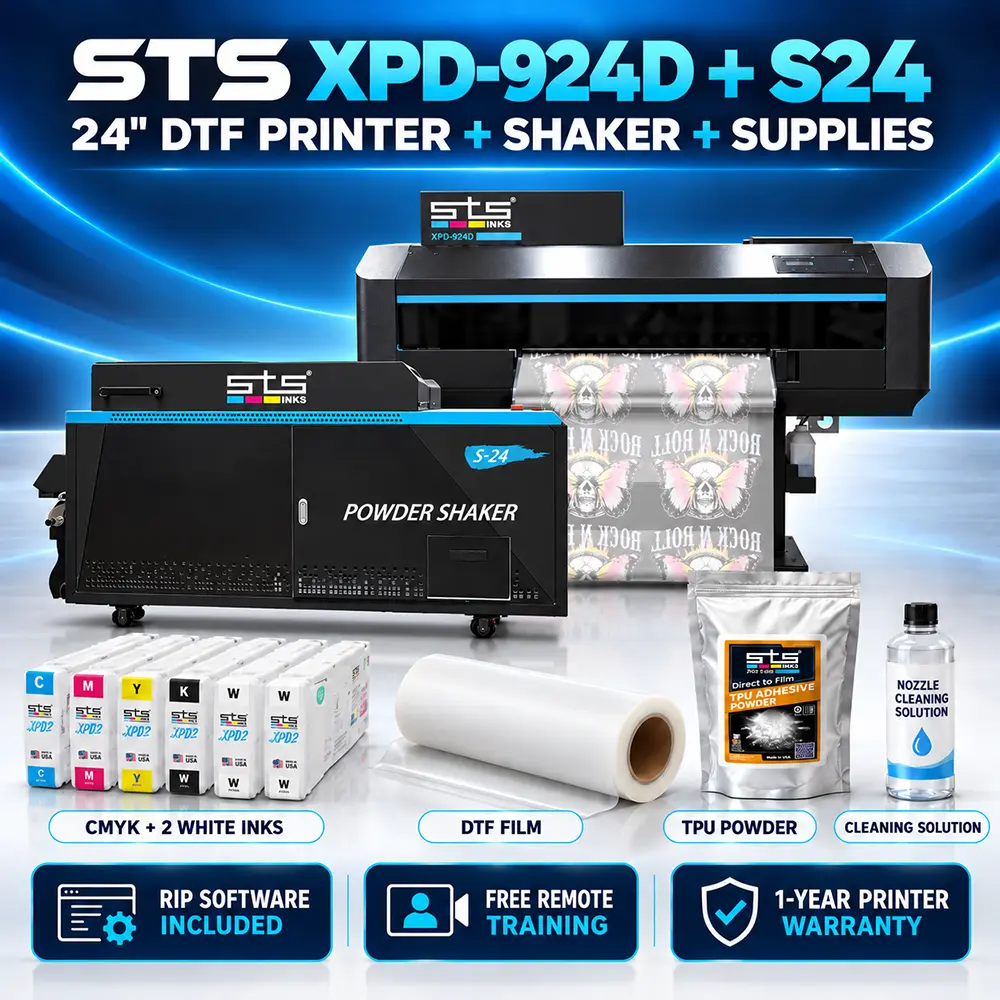

WHAT'S INCLUDED
A bundle that gets you moving.
Production equipment & support
STS XPD-924D 24-inch dual-head DTF printer
Black STS DTF PRO S24 shaker / curing oven
Professional RIP software
FREE remote training and onboarding
1-year printer warranty, including printheads*
Your starter supplies
CMYK + two white ink cartridges
Low-migration TPU adhesive powder
Premium DTF film
Nozzle cleaning solution
*Printhead coverage: 1 year or 6 billion jets, whichever occurs first, subject to applicable STS warranty terms and required maintenance.
A heat press is required for garment application and is sold separately. This bundle includes the printer and automatic powdering / curing equipment.
YOUR PRINT - POWDER - CURE WORKFLOW
From artwork to ready-to-press transfers.
01 / Print
Arrange artwork in the included RIP, then print CMYK + white onto compatible DTF film using the dual-head XPD-924D.
02 / Powder + cure
The S24 applies TPU adhesive powder and uses controlled infrared heat to cure the printed transfers.
03 / Press + deliver
Apply the cured transfer to a compatible garment with a suitable heat press. Use the settings recommended for your film, powder and garment.
WHY CHOOSE THE XPD-924D
Performance you can put to work.
Precision in every transfer
Two staggered AccuFine HD printheads support crisp lettering, fine detail and smooth gradients, with up to 1200 x 1200 dpi resolution.
White ink that keeps moving
Continuous white ink circulation helps reduce pigment settling. Automatic cleaning cycles support routine care; daily maintenance remains essential.
More consistency. Less adjustment.
DropMaster 2 assists bi-directional alignment, Feed Master supports feed adjustment and i-screen print effects help reduce visible banding.
A clearer view of production
Mutoh Status Monitor provides print history, ink-based job costing and maintenance information. Media Tracker helps monitor remaining film. Accessible maintenance areas and internal LED lighting support daily operation.
INCLUDED: BLACK STS DTF PRO S24
Automate the steps after printing.
The black S24 brings powder distribution, film handling and curing together in one 24-inch system. Its matching finish creates a coordinated production setup with the XPD-924D. STS part number: STS.DTF.PRO.S24.
Larger touchscreen + powered access
A larger LCD HMI provides adjustable temperature and auto/manual controls. Motorized heavy-duty pistons assist automatic hood opening and closing.
Gear protection + extra vacuum
Gear protection and extra vacuum are S24 features. Vacuum conveying, mesh/belt transport and tension feed / take-up support film handling through the system.
Automatic TPU shutoff + powder control
Automatic TPU shutoff complements automatic powder weight distribution, adding control to the adhesive application workflow.
Infrared curing + integrated filtration
Top and bottom infrared drying provide controlled heat. Built-in charcoal and HEPA filtration, powder-chamber sensing and dual overheat shutoffs support operation. Provide appropriate workplace ventilation.
SPEED WHEN YOU NEED IT. DETAIL WHEN IT COUNTS.
Pick the right mode for every job.
Choose rated production output of 145 sq. ft./hr, or select higher-resolution modes for artwork that needs finer detail.
| Print mode | Resolution | Passes | Rated speed |
|---|
| High speed | 900 x 600 dpi | 3 | 188 sq. ft./hr |
| Production | 600 x 1200 dpi | 4 | 145 sq. ft./hr |
| Enhanced quality | 900 x 1200 dpi | 6 | 96 sq. ft./hr |
| High quality | 1200 x 1200 dpi | 8 | 72 sq. ft./hr |
*Manufacturer-rated printer speeds. Actual output varies with artwork, mode, RIP settings, maintenance and operating conditions. Powdering, curing and handling affect finished-transfer throughput.
EXPAND WHAT YOU CAN OFFER
One workflow. A wider range of apparel.
Create transfers for cotton, polyester, blends, fleece, denim and compatible nylon applications. Produce logos, oversized graphics and personalized designs for T-shirts, hoodies, uniforms and tote bags.
STS DTF inks are manufactured in the USA. Use compatible film and powder, and test garment combinations before production, especially heat-sensitive fabrics and polyester susceptible to dye migration.
COMPARE AVAILABLE OPTIONS
Choose the package that fits your shop.
| STS XPD-924 | STS XPD-924D + S24 Shaker |
|---|
 |  |
- XPD-924D 24-inch DTF Printer with dual AccuFine HD printheads
- Digital Factory RIP 11
- 6 High Capacity Ink Cartridges, 6 Cleaning Cartridges
- DTF Powder, DTF Film Roll
- Remote Training & Onboarding Included by STS certified Technicians
| - XPD-924D 24-inch DTF Printer with dual AccuFine HD printheads
- Digital Factory RIP 11
- 6 High Capacity Ink Cartridges, 6 Cleaning Cartridges
- DTF Powder, DTF Film Roll
- S-24 STS 24" Shaker Pro (includes HMI Digital Touch Screen + Air Filter)
- Remote Training & Onboarding Included by STS certified Technicians
|
| $23,745.29 view item | $34,655.99 |
PRINTER SPECIFICATIONS
The details behind the performance.
| Specification | STS XPD-924D |
|---|
| Printheads | 2 staggered AccuFine HD printheads |
| Printing technology | Drop-on-demand Micro Piezo inkjet |
| Maximum printable width | 24.5 inches (printer); use compatible 24-inch film with the S24 |
| Maximum resolution | 1200 x 1200 dpi |
| Ink configuration | CMYK + White; six cartridge slots |
| Ink cartridge size | 500 ml XPD2 DTF cartridges |
| Interface | Gigabit Ethernet (1000BASE-T) |
| Printer dimensions with stand | 70.68" W x 35.23" D x 56.48" H (cover closed) |
| Operating environment | 68-77 F; 40-55% relative humidity |
SHAKER SPECIFICATIONS
Black STS DTF PRO S24 shaker / curing oven.
| Specification | STS S24 |
|---|
| STS part number | STS.DTF.PRO.S24 |
| Finish | Black |
| Working width | 24 inches / 610 mm |
| Electrical | 208/220 V, 50/60 Hz, single-phase, 30 A |
| Listed power consumption | 6 kW |
| Approximate equipment dimensions | 980 W x 1680 L x 1020 H mm (about 38.6" x 66.1" x 40.2") |
| Net weight / shipping weight | 552 lb / 815 lb |
Confirm final electrical requirements, equipment dimensions and installation clearances for the unit ordered before preparing your workspace.
BEFORE YOUR FIRST JOB
Get set up with confidence.
Software & training: Professional RIP software and remote onboarding are included. Confirm the software edition and compatible computer requirements when ordering.
Workspace & power: Allow room for roll loading, hood access, maintenance and supplies. The S24 requires 208/220 V, single-phase, 30 A service. Confirm installation requirements and provide suitable ventilation.
Daily care: Operators still perform loading, maintenance and production checks. White ink circulation supports reliability; routine cleaning and a controlled printing environment remain essential.
BUILT FOR PROFESSIONAL TRANSFER PRODUCTION
Bring your production line together.
Dual-head DTF printing. Automated powdering and curing. Starter supplies, professional RIP software and FREE remote training from DTG PRO. Build your next stage of transfer production around the STS XPD-924D + black S24 bundle.
