STS DTF PRO S24 - 24-INCH AUTOMATIC POWDER SHAKER + CURING OVEN
Less hand powdering.
More production momentum.
Move beyond repetitive manual coating. The black STS DTF PRO S24 brings automatic TPU powder application, controlled infrared curing and film handling together in one 24-inch system, built for growing apparel and transfer shops.
LARGER TOUCHSCREENGEAR PROTECTIONEXTRA VACUUMAUTO TPU SHUTOFF
STS DTF PRO S24 - Matching black finish - Part number STS.DTF.PRO.S24
AUTOMATE POWDERING + CURING
The next step after a great print.
A sharp, colorful print is only part of the transfer process. Adhesive coverage, curing and film handling matter too. The S24 helps standardize those steps, reducing repetitive manual work while keeping temperature and operating controls within easy reach.
S24 / TOUCHSCREEN
Larger 7-inch touchscreen
The LCD HMI puts temperature settings and auto/manual operation on a larger, easy-to-read control screen.
S24 / PROTECTION
Gear protection
Gear protection adds a practical equipment feature for shops running regular powdering and curing production.
S24 / FILM CONTROL
Extra vacuum
Extra vacuum capability complements the vacuum conveying system to support film handling through the powdering and curing stages.
S24 / POWDER CONTROL
Automatic TPU shutoff
Automatic TPU shutoff adds another control feature to the adhesive powder workflow, alongside automatic powder weight distribution.
HOW IT FITS YOUR WORKFLOW
A smoother path to finished transfers.
PRINT - POWDER - CURE - PRESS
Print your design on compatible DTF film, apply TPU adhesive powder with the S24, then cure it using the integrated infrared drying system. Apply the cured transfer to a compatible garment with a suitable heat press.
CONTROL, ACCESS & CONSISTENCY
Designed to keep the work moving.
01 / CURING
Controlled infrared curing
Top and bottom infrared drying, together with HMI-adjustable temperature, give operators control over the curing stage. Use the settings recommended for your ink, film and powder combination.
02 / POWDERING
Automatic adhesive application
Automatic TPU powder weight distribution helps apply adhesive across printed film. The mesh/belt-driven system supports the powdering workflow.
03 / AUTO LIFT
Powered hood access
Motorized heavy-duty pistons provide automatic hood opening and closing, making access more convenient during operation and routine care.
04 / HANDLING
Conveying and take-up
Vacuum conveying, tension feed and a take-up reel support film transport. Operate the S24 independently or together with a compatible STS DTF printer.
05 / FILTRATION
Built-in air purification
An integrated air purifier combines charcoal and HEPA filtration. Plan appropriate workplace ventilation for powder handling and curing.
06 / SENSORS
Integrated safety sensing
The TPU chamber includes a safety sensor, and dual automatic shutoff sensors help prevent overheating. Follow the operating instructions and required maintenance.
BLACK FINISH. COORDINATED PRODUCTION.
A professional match for the XPD-924D.
The S24 pairs with the black STS XPD-924D for a coordinated 24-inch DTF system. Add it to a compatible printer workflow when you are ready to automate adhesive application and curing.

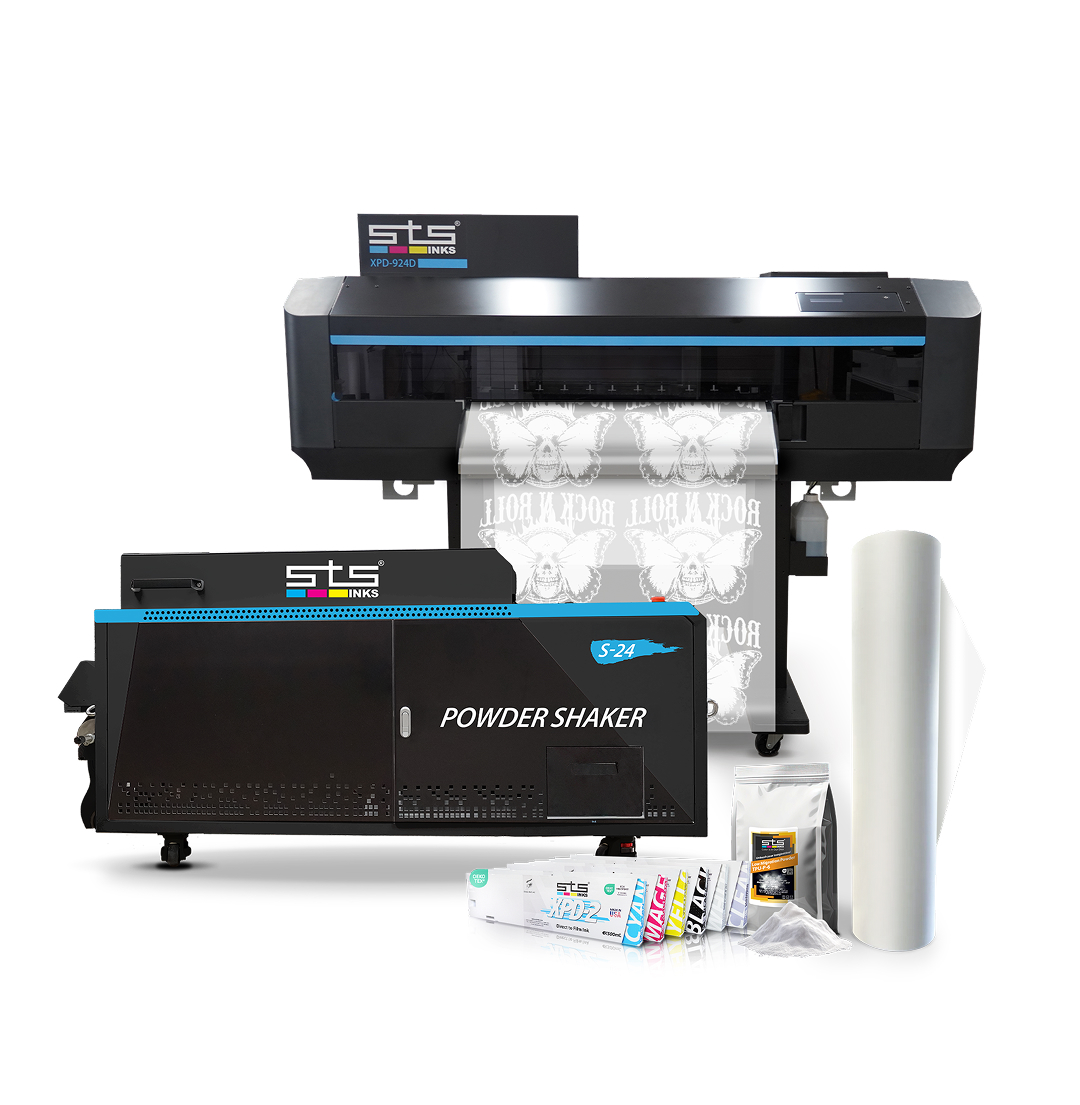

System illustration: Printer and consumables are shown for workflow context and are sold separately from this standalone shaker listing.
S24 TECHNICAL SPECIFICATIONS
Plan your space with confidence.
| Specification | STS DTF PRO S24 |
|---|
| Product type | Automatic DTF adhesive powder shaker + curing oven |
| STS part number | STS.DTF.PRO.S24 |
| Finish | Black |
| Maximum working width | 24 inches / 610 mm |
| Touchscreen | 7-inch LCD HMI |
| Drying system | Top and bottom infrared |
| Operating controls | Auto and manual; adjustable temperature |
| Film handling | Mesh/belt driven; vacuum conveying; tension feed / take-up reel |
| Air filtration | Built-in charcoal + HEPA air purifier |
| Electrical requirements | 208/220 V, 50/60 Hz, single-phase, 30 A |
| Listed power consumption | 6 kW |
| Equipment dimensions | 980 W x 1680 L x 1020 H mm
Approximately 38.6" W x 66.1" L x 40.2" H |
| Packaging dimensions | Approximately 46" W x 75" L x 44" H* |
| Net weight | 250 kg / 552 lb |
| Shipping weight | 370 kg / 815 lb |
*Confirm crated dimensions, electrical requirements and installation clearances for the actual unit before arranging delivery or preparing the workspace.
BEFORE YOU GET STARTED
What you need to complete the workflow.
Compatible printer: Use the S24 with a suitable DTF printer and compatible film, TPU powder and ink system. The printer and consumables are sold separately.
Electrical service & room to work: Prepare suitable 208/220 V, single-phase, 30 A service, plus space for feeding, take-up, hood access and maintenance. Confirm the unit's final installation requirements.
Garment application: A heat press is required to apply the cured transfer to garments and is sold separately.
