Roland TrueVIS XG-640 64" Eco-Solvent Printer/Cutter

DETAILS | FAQ

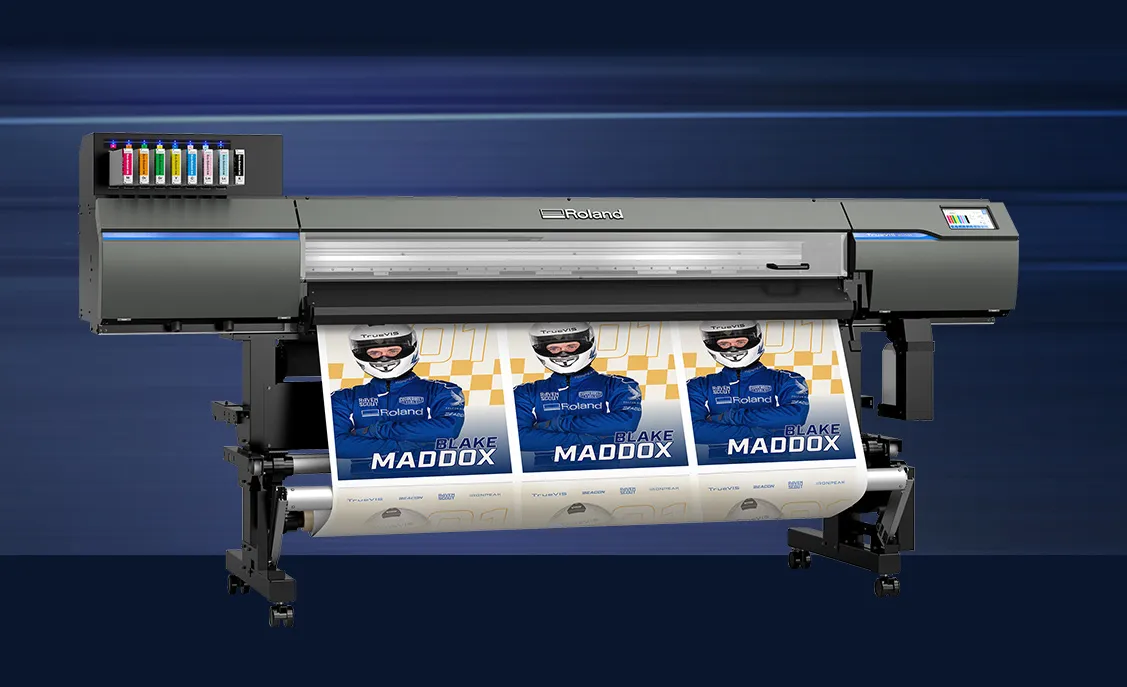

Roland TrueVIS XG-640 64" Large-Format Printer/Cutter - Eco-Solvent

The Roland TrueVIS XG-640 is the next evolution in high-performance wide-format printing and cutting. This powerful 64-inch printer/cutter is engineered for professionals who demand vibrant color, fast output, and versatile media handling. Powered by Roland's newest TR3 eco-solvent inks, dual staggered printheads, and the powerful VersaWorks 7 RIP software, the XG-640 delivers bold color accuracy, smooth gradients, and reliable precision on every job.

From vehicle wraps and wall murals to apparel transfers and labels, the XG-640 gives you the tools to expand your offerings and scale your production efficiently - all in one powerful, integrated device.

Capabilities:

• Integrated Print & Cut System
• 64" Maximum Media Width
• Up to 819 sq ft / hour (Draft Mode)

Key Features

• Integrated Print & Cut Workflow: Print and contour cut in a single process - perfect for decals, stickers, labels, and heat transfers.
• 8-Color TR3 Ink Configuration: CMYK, Light Cyan, Light Magenta, Orange, and Green for expanded color gamut and precise brand color reproduction.
• Dual Staggered Printheads: Designed for high-speed, high-precision printing with exceptional detail and consistent color.
• True Rich Color 3 Output Engine: Produces vivid solids, smooth blends, and neutral gray balance.
• VersaWorks 7 RIP Software: Advanced RIP with intuitive interface, job nesting, spot color control, and automated production tools.
• Heavy-Duty Media Handling: Includes automated take-up reel and supports a wide range of media types for signage and graphics production.

Ideal Applications

• Vehicle Wraps & Graphics
• Wall Murals & Window Displays
• Stickers, Labels & Decals
• Heat Transfer Apparel Graphics
• Indoor & Outdoor Signs & Banners

Technical Specifications

• Printing Method: Piezo Ink-Jet
• Media Width: 13.2 - 64 in (335 - 1,625 mm)
• Max Print / Cut Width: 62.9 in (1,600 mm)
• Media Thickness: Printing: Max 39.3 mil (1.0 mm) with liner; Cutting: Max 15.7 mil (0.4 mm) with liner / 8.6 mil (0.22 mm) without liner
• Roll Weight: Up to 99 lb (45 kg)
• Roll Diameter: Max 9.8 in (250 mm)
• Core Diameter: 3 in (76.2 mm) or 2 in (50.8 mm)

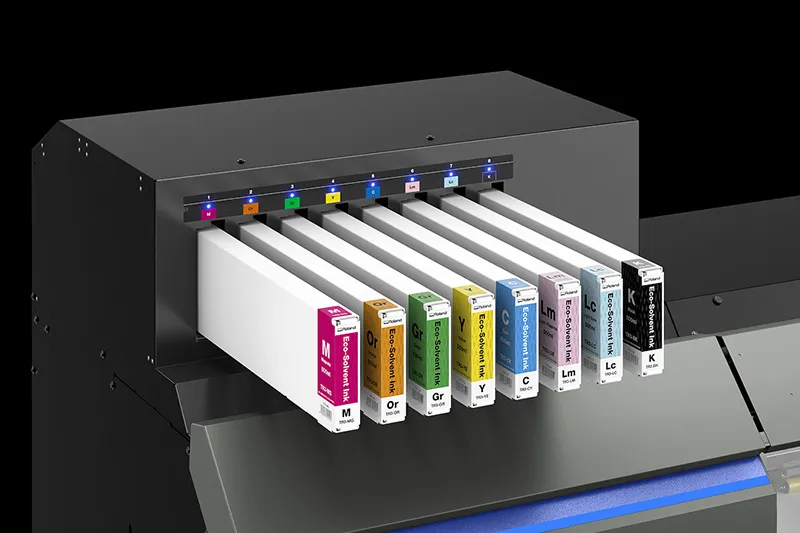

• Ink Type: TR3 Eco-Solvent Ink (500 ml cartridges, white 220 ml)
• Ink Configurations: 8-Color: CMYK + Light Cyan + Light Magenta + Orange + Green; 7-Color: CMYK + Orange + Green + White; 4-Color: CMYK
• Max Print Resolution: Up to 1,800 dpi
• Cutting Speed: 0.39 - 11.8 in/sec (10 - 300 mm/s)
• Blade Force: 30 - 500 gf
• Blade Type: Roland CAMM-1 Series
• Media Heating System: Print heater: 86 - 113 °F (30 - 45 °C); Dryer: 86 - 131 °F (30 - 55 °C)
• Connectivity: Ethernet (100BASE-TX / 1000BASE-T)
• Power Consumption: Approx. 1180 W (operation) / 50 W (sleep)
• Acoustic Noise: 66 dB or less during operation
• Dimensions: 113.7 x 29.5 x 55.8 in (2,886 x 748 x 1,415 mm)
• Weight: 433 lb (196 kg)
• Operating Environment: 68 - 89.6 °F (20 - 32 °C), 35 - 80% RH

Included Items

• Dedicated printer stand
• Media take-up unit
• Media holders
• Replacement separating blade
• Cleaning liquid and maintenance accessories
• Drain bottle
• User manuals
• VersaWorks RIP software
• Roland DG Connect production management platform

Required / Sold Separately

• Roland TR3 Eco-Solvent Inks - Required ink cartridges for operation. Available in multiple color configurations including CMYK, Light Cyan, Light Magenta, Orange, Green, and White.
• 64" High Volume Dryer - Recommended for higher production environments to ensure proper curing and drying of prints, especially when running faster print modes or heavier ink coverage.
• Professional Installation
